Need Racking or Storage Solutions?
Your Trusted Partner in Racking Systems
We design, supply & install all types of racking and shelving.
Expand Vertically with Pallet Racking Mezzanine Floors
Need more warehouse space but can’t expand your footprint? Our pallet racking mezzanine floor systems deliver a smart and cost-effective solution by using your existing racking as the maintain structure for a multi level floor system its also known as rack supported platforms.
Its also suitable for UAE warehouses looking to maximize cubic space that these mezzanine systems combine pallet storage below and usable workspace or shelving above.
What is pallet racking with shelves?
Pallet Racking Mezzanine Floors (also known as rack-supported mezzanines) are multi level storage systems where the mezzanine floor is designed directly on top of pallet racking frames. This also makes additional usable floor space above while maintaining heavy duty pallet storage below.
Benefits
- Cost-Efficient Expansion: Add usable floor space without costly building extensions
- Dual-Purpose Usage: Pallet storage below + work or storage area above.
- Custom-Engineered for Each Site: Adaptable to your inventory, building, and operations.
- Strong, Load-Bearing Design: Built using heavy-duty pallet racking frames and beams.
- Quick Installation: Fast turnaround with minimal warehouse disruption.
Our Pallet Racking Mezzanine Floors Products

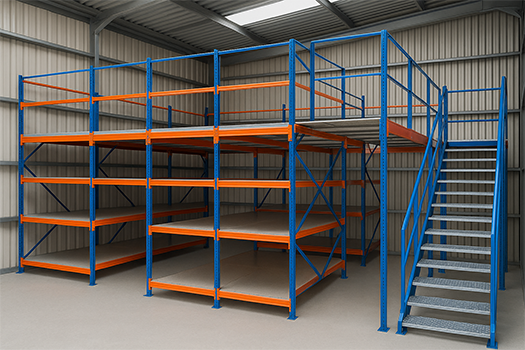

Single-Tier Pallet Racking Mezzanine System
Single tier pallet racking mezzanine systems combine ground level pallet storage with an uplifted platform for additional storage or workspace above.
Specs:
- Total Height: 4500mm – 6000mm
- Floor Height: 2500mm – 3000mm
- Load Capacity: 300–500 kg/m² (mezzanine), 2000 kg/pallet (racking)
- Decking: Steel chequer plate or heavy-duty chipboard
- Finish: Powder-coated (custom color options)
Applications:
Distribution centers, archive storage, pick & pack stations

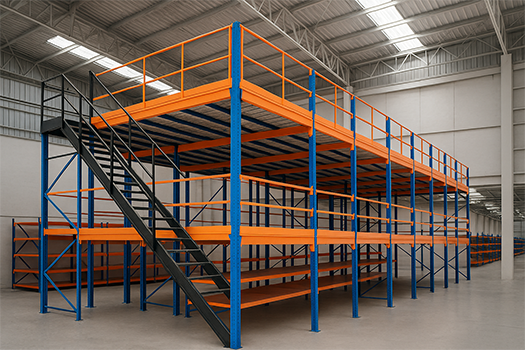

Double-Tier Pallet Racking Mezzanine
Double-tier pallet racking mezzanine systems deliver two elevated storage levels above ground racks, maximizing vertical space for high density warehouse storage.
Specs:
- Total Height: Up to 9000mm
- Floor Levels: 2 mezzanine tiers above pallet racks
- Decking Options: Steel grating, timber board, or chequer plate
- Load Rating: 350–500 kg/m²
- Includes: Staircases, handrails, pallet drop zones
Applications:
Automotive parts, multi-level storage and industrial stockrooms
Hybrid Mezzanine + Racking with Shelving
Hybrid mezzanine systems combine structural mezzanine floors with integrated racking and shelving below and also making multi functional storage for both bulk and small items.
Specs:
- Height: 4500mm
- Pallet Load: 1000–2000 kg
- Shelf Load (upper): 200–500 kg per level
- Deck: Anti-slip plywood or steel panel
- Integration: Mix of shelving, bins, and light racking on top level
Applications:
E-commerce fulfillment, spare parts and hand-pick storage.
Racking-Supported Office Mezzanine
Racking-supported office mezzanines utilize heavy-duty pallet racking as the structural base to support elevated office spaces, optimizing floor area in warehouses.
Specs:
- Floor Height: 2700mm–3200mm
- Load Capacity: 250–400 kg/m²
- Customization: Enclosed office, lighting, HVAC provisions
- Finish: Epoxy painted or powder-coated frame
- Safety: Fire-retardant flooring and stairways
Applications:
Warehouse office space, QC area and manager zones above racking
Heavy-Duty Pallet Mezzanine with Pallet Gates
Heavy-duty pallet mezzanines with pallet gates feature uplifted storage platforms build for high-load pallet handling and also guarantee safe loading and unloading access points.
Specs:
- Load: Up to 800 kg/m² (mezzanine), 3000 kg/pallet (racks)
- Deck: Steel plate with forklift-rated strength
- Features: Safety rails, pallet gates, anti-slip treatment
- Frame: Structural steel uprights
Applications:
Industrial manufacturing, heavy goods storage and pallet loading zones.
Customizable Options
Load capacity: Up to 1000kg/m²
Pallet racking mezzanine floors maintain loads up to 1000kg/m², Its also perfect for heavy-duty storage, equipment or multi-level warehouse operations.
Floor surface: Steel grating, wood panels, or checker plates
Floor surface options include steel grating for ventilation, wood panels for cost-effectiveness and also checker plates for slip-resistant, heavy-duty applications.
Decking height: 2.5m to 4.5m+
Decking height ranges from 2.5m to over 4.5m and also allowing flexible vertical expansion based on storage volume and facility layout.
Access: Steel staircases, handrails, pallet gates
Access options include robust steel staircases, safety handrails and also pallet gates for safety movement of personnel and goods between levels.
Add-ons: Lighting, shelving, conveyors, offices
Add-ons include integrated lighting, shelving systems, conveyors for material handling and also enclosed office spaces to improves functionality and workspace efficiency.
Our Services
Free consultation & site survey
Load calculations and structural design
CAD layout and 3D visualization
Fabrication, delivery & installation
Ongoing inspection and maintenance services
Why Choose Us?
We offer full-service support:
UAE’s trusted name in rack-supported structures
Built with ISO-certified racking systems
Designed to local safety & civil defense standards
Full project management – from design to completion
Competitive pricing and rapid delivery
ISO Certified
Suitable For:
Warehouses & distribution hubs
E-commerce fulfillment centers
Spare parts & tools storage
Packing and kitting stations
Archive and document storage
Light-duty manufacturing areas
Serving All Emirates
We supply and install pallet racking mezzanine floors across the UAE, including:
Dubai
Abu Dhabi
Sharjah
Ajman
Ras Al Khaimah
Fujairah
Frequently Asked Question(FAQ)
It’s a multi-level storage system that combines pallet racking on the ground level with an elevated mezzanine floor above, maximizing vertical space for storage or workspace.
Load capacities range up to 1000 kg/m², depending on the design and intended use—suitable for heavy pallets, equipment or personnel.
Decking surfaces can include steel grating for airflow, wood panels for economy, or checker plates for anti-slip durability in industrial environments.
Yes, they are highly customizable in size, height (2.5m to 4.5m+), decking type, and access options like staircases, handrails, and pallet gates.
