Bolt Free Racking Systems – Flexible & Fast Assembly Storage Solution
Reliable, Adjustable, and Cost-Effective Storage for Everyday Needs
Bolt free racking systems are the best suited solution for businesses seeking easy to assemble and medium duty storage racks without the need for nuts and bolts. Its also designed for adaptability that these racking units provide adjustable shelves, tool-free installation and high sturdy and strength. Its also creating them perfect for warehouses, workshops and retail backrooms. The system also allows easy configuration modify to accommodate different material sizes and storage needs. Bolt free racking is a cost effective and also space saving solution with powder coated finishes for wear resistance and load capacities ranges from 200kg to 800kg per level. Its also available in multiple heights and depths then this racking system is popular across the UAE for its efficiency and ease to use.

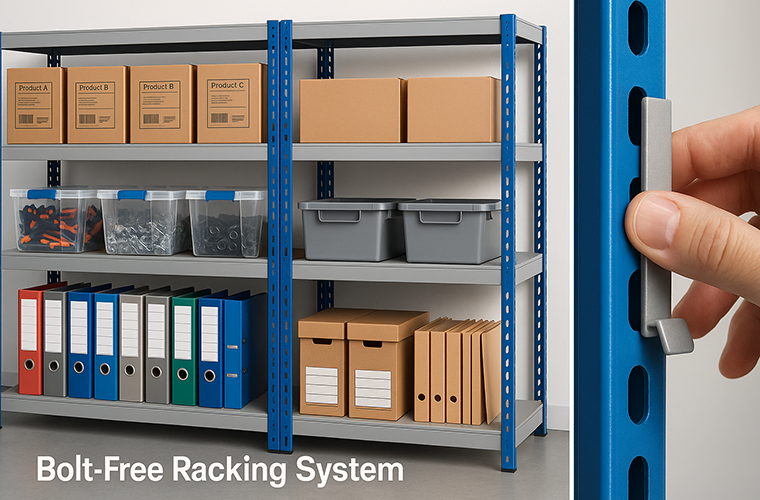

What is Bolt-Free Racking?
Bolt-free racking is a medium duty shelving system built for tool-free assembly using a rivet or slot mechanism instead of traditional nuts and bolts. The components are also easily slotted and locked into place and then creating it a quick, adaptable and cost effective storage solution. This racking system also commonly used in warehouses, work places and retail stockrooms. Bolt-free racking also allows fast configuration modification and efficient use of vertical space.
Benifits
- Tool-Free Assembly: No bolts or nuts required – quick to set up or adjust without special tools.
- Adjustable Shelves: Easily modify shelf height to fit varying product sizes or storage needs.
- Cost-Effective: Reduced installation time and material cost make it budget-friendly.
- Versatile Applications: Suitable for offices, retail, small warehouses, and home storage.
- Durable Design: Made of high-tensile steel with powder-coated or galvanized finish for long-lasting use.
- Expandable & Modular: Can be extended or reconfigured as your storage needs grow.
Our Medium Duty Racking Products
Bolt-Free Medium Duty Rack – Steel Shelf
Bolt-free medium duty racks with steel shelves deliver tool-free and easy to assemble, sturdy support and also easy adjustability for efficient warehouse storage.
Specs:
- Height: 2000mm – 3000mm
- Width: 1000mm – 2000mm
- Depth: 400mm – 600mm
- Load per Level: 250–400 kg
- Finish: Powder-coated (grey/blue/orange)
- Decking: Galvanized steel shelf panels
Applications:
Retail stockrooms, clinics and spare parts storage.
Long Span Medium Duty Rack – MDF Deck
Long span medium duty racks with MDF decking features wide, durable shelving also its perfect for storing cartons, tools and medium weight inventory items.
Specs:
- Height: 2000mm – 3500mm
- Width: 1500mm – 2700mm
- Depth: 600mm – 900mm
- Load per Level: 400–600 kg
- Deck: 18–25mm MDF or plywood
- Finish: Epoxy powder-coated steel frame
Applications:
Industrial tools, e-commerce items and bulky hand-loaded stock
Slotted Angle Rack – Light Duty
Slotted angle racks for light duty use offer adaptable and bolt-based shelving. Its also perfect for lightweight storage in work places, archives and retail backrooms.
Specs:
- Height: 1800mm – 2400mm
- Width: 900mm – 1200mm
- Depth: 400mm – 600mm
- Load per Level: 100–250 kg
- Material: Galvanized steel or powder-coated angles
- Assembly: Bolt-and-nut construction
Applications:
Archive rooms, small inventory rooms and stationary stores.
Medium Duty Rack with Wire Mesh Shelves
Medium duty racks with wire mesh shelves deliver improved ventilation, visibility and fire safety. Its also perfect for storing cartons, tools and consumables in warehouses.
Specs:
- Height: 2500mm – 3500mm
- Width: 1200mm – 1800mm
- Depth: 600mm – 800mm
- Load per Level: 300–500 kg
- Deck: Galvanized wire mesh with support bars
- Finish: Hot-dip galvanized or powder-coated
Applications:
Cold storage, food distribution and also clean areas.
Mobile Medium Duty Racking on Castors
Mobile medium duty racking on castors features adaptable and movable storage with 300–800 kg capacity per level. Also its perfect for dynamic warehouse and retail environments.
Specs:
- Height: 2000mm
- Width: 1200mm
- Depth: 500mm
- Load: 300 kg per shelf (max 1000 kg per unit)
- Mobility: Lockable industrial castor wheels
- Optional: Brakes, handles, bins
Applications:
Garages, workshops, hospitals and event storage.

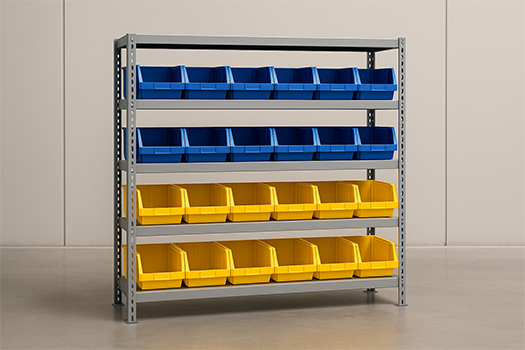

Medium Duty Rack with Plastic Bin Compartments
Medium duty racks with plastic bin compartments deliver stored, large capacity storage for small parts and tools and also its suitable for workshops, warehouses and also assembly lines.
Specs:
- Height: 2000mm
- Levels: 4–6 adjustable tiers
- Bin Sizes: Small (A4) to Large (20L)
- Frame: Powder-coated steel with bin support rails
- Bin Material: Industrial polypropylene
Applications:
Spare parts, electronics and service workshops.
Customizable Options

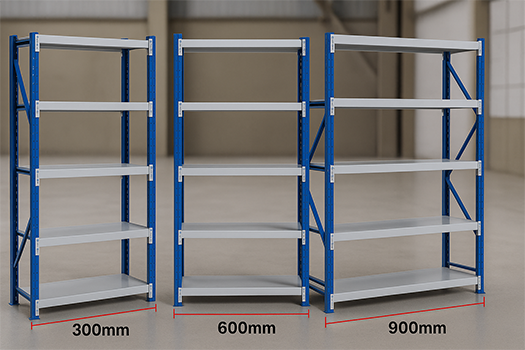

Various shelf widths (900mm–2700mm) and depths (400mm–900mm)
Bolt-free racking delivers different shelf widths (900mm–2700mm) and depths (400mm–900mm) for adaptable storage in diverse environments.
Modular add-on bays
Modular add-on bays also allow seamless expansion of bolt-free racking systems and also enabling users to personalize layouts and maximize available storage space.
Bolt-free design for easy reconfiguration
Bolt-free design enables quick and tool-free reconfiguration of shelves and also allowing users to easily adapt the racking system to modifying storage needs.
Optional back mesh, dividers, and label holders
Optional accessories like back mesh, dividers and label holders improve safety, organization and also inventory management within bolt-free racking systems.

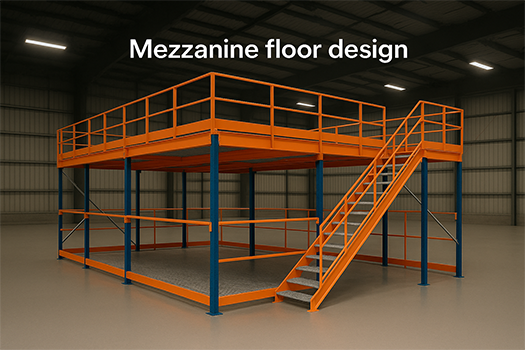

Compatible with mezzanine floors or mobile bases
Compatible with mezzanine floors or mobile bases, bolt-free racking systems deliver scalable storage solutions and increased mobility for dynamic warehouse setups.
Our Services
We are one of the leading medium duty racking suppliers in the UAE, offering warehouse racking systems that comply with local standards and international load safety certifications. Our systems are used in Dubai, Sharjah, Abu Dhabi, Ajman and across the Middle East.
Free site visit & measurement
CAD racking layout and safety review
Professional installation
Load testing and compliance
After-sales support and inspections
Why Choose Us?
We offer full-service support:
Specialized Expertise
Customized Solutions
High-Quality Materials
Fast Delivery & Installation
Competitive Pricing
ISO Certified
Serving All Emirates
We design, supply, and install drive-in racking in:
Dubai
Abu Dhabi
Sharjah
Ajman
Ras Al Khaimah
Fujairah
Frequently Asked Question(FAQ)
A bolt-free racking system uses interlocking components that eliminate the need for nuts and bolts, allowing quick and easy assembly without special tools.
Load capacities range from 150 kg to 600 kg per shelf level, depending on the size, material, and configuration of the racking.
Yes, shelves are fully adjustable at regular intervals, making it easy to reconfigure spacing based on your storage needs.
Absolutely. They are widely used in retail, offices, storerooms, e-commerce and even light industrial environments due to their flexibility and ease of use.
