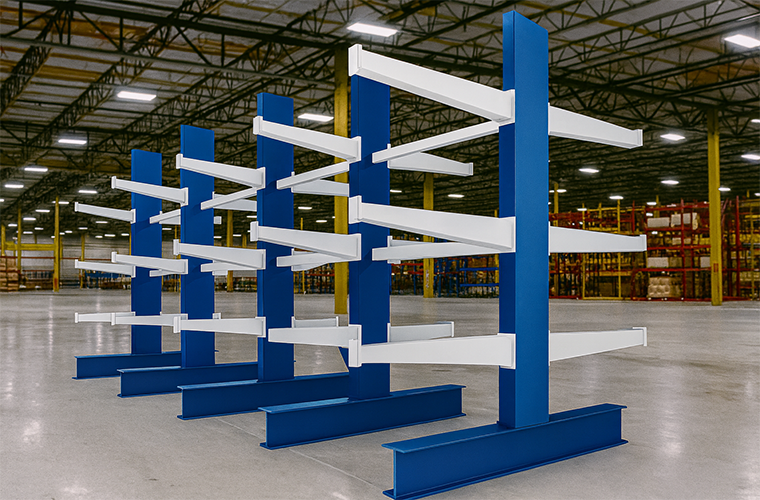

Cantilever Racking Systems in UAE – Store Long, Bulky, and Irregular Materials with Ease
Cantilever Racking Systems are suitable for storing long, bulky or irregular shaped items such as timber, pipes, panels and metal bars. Its also designed without front uprights that they allow easy forklift access and flexible loading from either side. Its also available in light, medium and heavy duty capacities and then Our cantilever racks can be personalized with adjustable arms, stoppers and galvanized finishes for indoor or outdoor use. We also deliver expert design, fast delivery and professional installation across the UAE, whether you need single sided, double sided or also mobile cantilever solutions. Its also ideal for industrial warehouses, construction suppliers and manufacturing facilities that require safe and cost effective horizontal storage.
What is Cantilever Racking?
Cantilever Racking is a heavy duty storage solution specifically designed to hold long, awkward or oversized items such as timber, steel pipes, furniture panels, aluminum profiles or plastic tubing. The system also uses vertical columns and horizontal arms (cantilevers) without front columns and then allowing unrestricted access by forklifts or manual pickers.
Its also perfect for industries handling lengthy or non standard inventory, cantilever racks are also available in light, medium and heavy duty capacities and also can be configured as single sided or double sided units.
Medium Duty Racking Benifits
- Unrestricted Front Access: No front uprights means forklifts and manual loaders can access items quickly from either side, improving handling efficiency.
- Ideal for Long & Bulky Items: Perfect for storing timber, pipes, steel bars, furniture panels, and other non-standard items that don’t fit on pallet racking.
- Highly Customizable: Available in various heights, arm lengths, load capacities, and finishes (powder-coated or galvanized). Arms are adjustable to suit different item sizes.
- Single or Double-Sided Design: Choose between wall-mounted or central aisle designs to maximize storage based on available floor space.
- Space-Efficient Layouts: Use vertical space effectively in narrow aisles or outdoor yards by stacking items horizontally in organized tiers.
- Expandable & Scalable: Easily add bays, arms, or convert from light to heavy-duty versions as your inventory or business grows
Our Cantilever Racking Products

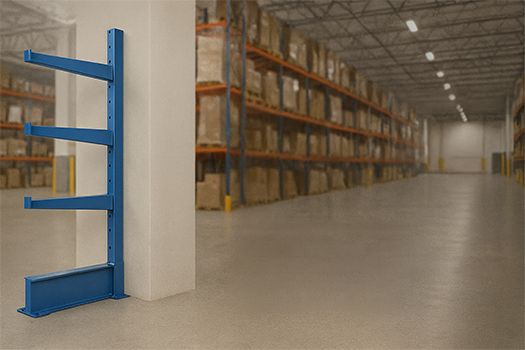

Light Duty Cantilever Rack – Single Sided
Compact design for wall-mounted or limited space storage. Its also suitable for light timber, tubing and plastic profiles.
Specs:
- Height: 2000mm – 3000mm
- Arm Length: 600mm – 1000mm
- Load Capacity: 150–300 kg per arm
- Frame Finish: Powder-coated
- Mounting: Floor anchored
Applications:
Retail stores, carpentry shops and small parts handling.
Medium Duty Cantilever Racking – Double Sided
Mid-level capacity with storage access from both sides. Its also adjustable arms with welded stoppers for added safety.
Specs:
- Height: 2500mm – 4000mm
- Arm Load: 400–800 kg
- Arm Type: Adjustable bolt-on with lip ends
- Finish: Epoxy painted or galvanized
- Support: Base plates and braced uprights
Applications:
Timber yards, plumbing supplies and furniture stockrooms.

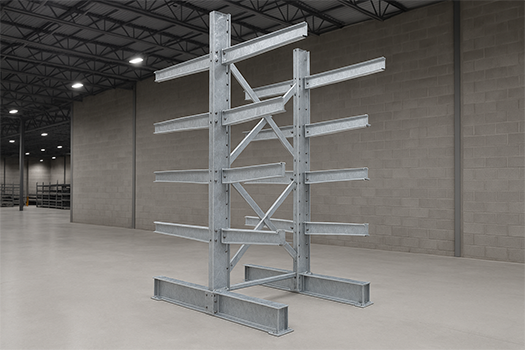

Heavy Duty Cantilever Rack – Galvanized Steel
Designed for storing pipes, steel bars and also bundled materials in industrial or outdoor environments.
Specs:
- Height: 4000mm – 8000mm
- Arm Load: Up to 1500 kg
- Arm Length: 1000mm – 1500mm
- Material: Hot-dip galvanized steel
- Safety: Back bracing, stopper pins, base anchoring
Applications:
Steel service centers, manufacturing, ports and outdoor yards.

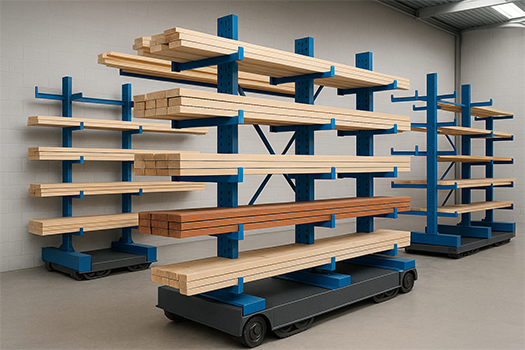

Mobile Cantilever Racking System
Mounted on rail systems or industrial castors also this rack maximizes storage efficiency and accessibility.
Specs:
- Load: 300–1000 kg per arm
- Movement: Manual or mechanized rails
- Height: Up to 4000mm
- Arm Type: Lock-in adjustable
- Base: Track-embedded mobile platforms
Applications:
Pipe stores, textile rolls and mobile fabrication units.
Customizable Options

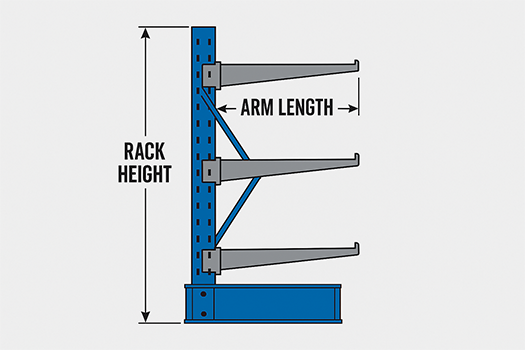

Rack Height & Arm Length
Cantilever Racking Systems feature personalized rack height and arm length, its also providing flexible storage for long, bulky and irregularly shaped items.

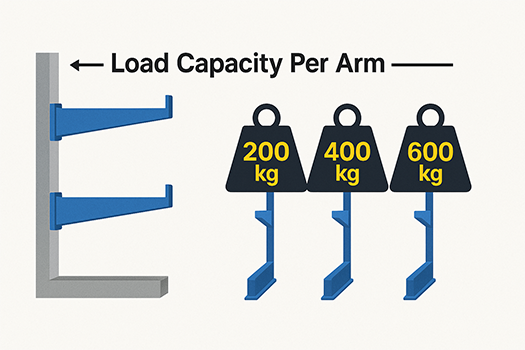

Load Capacity Per Arm
Cantilever Racking Systems also deliver a high load capacity per arm and then typically ranging from 500 kg to 5000 kg and also depending on design and material.

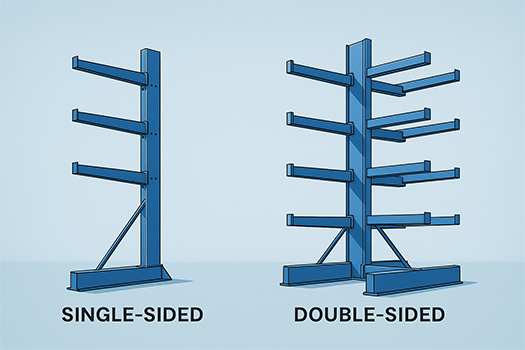

Single or Double-Sided Racks
Cantilever Racking Systems are also available in single sided racks for wall placement or double sided racks for maximum storage access from both sides.
Finish & Coating
Cantilever Racking Systems come with durable powder coated or galvanized finishes, its also providing superior protection against corrosion, wear and harsh warehouse conditions.

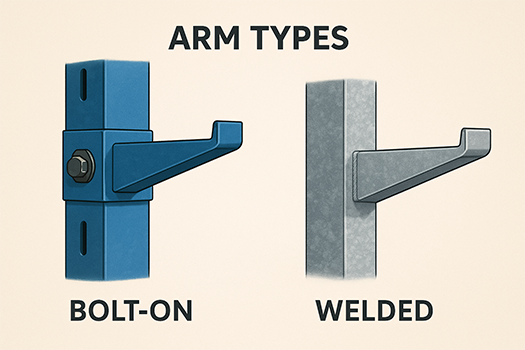

Arm Types
Cantilever Racking Systems deliver different arm types, including straight arms for flat items and inclined arms for round or irregular materials and guarantee secure storage.

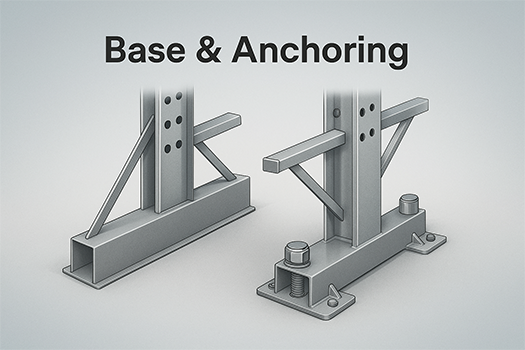

Base & Anchoring
Cantilever Racking Systems provide heavy duty steel bases with safety anchoring options and also guarantees maximum stability and safe load-bearing performance.
Our Cantilever Racking Services
Consultation & Site Assessment
3D Design & Load Calculations
Manufacturing & Supply
Professional Installation
Fully Customization
Maintenance & Expansion Support
Why Choose Us?
We offer full-service support:
10+ Years of Racking Expertise in UAE
Heavy-duty and custom-built designs
Full compliance with EN/FEM/SEMA standards
Quick delivery and installation
Competitive pricing for B2B and government clients
ISO Certified
Serving All Emirates
We supply and install Cantilever Racking Systems across the UAE, including
Dubai
Abu Dhabi
Sharjah
Ajman
Ras Al Khaimah
Fujairah
Frequently Asked Question(FAQ)
Cantilever racking is a storage system with arms extending from upright columns, designed for long, bulky or irregularly shaped items like pipes, wood and metal sheets.
Each arm can hold between 500 kg to 5000 kg, depending on the design, material, and structural configuration.
Yes, rack height, arm length, arm type (straight or inclined), and configurations (single or double-sided) can also be personalized based on storage needs.
Cantilever racks are available in powder-coated or galvanized finishes for durability and corrosion resistance.
